返回首页 Android RoboGuice 使用指南

Android RoboGuice

Android RoboGuice2

RoboGuice 功能描述

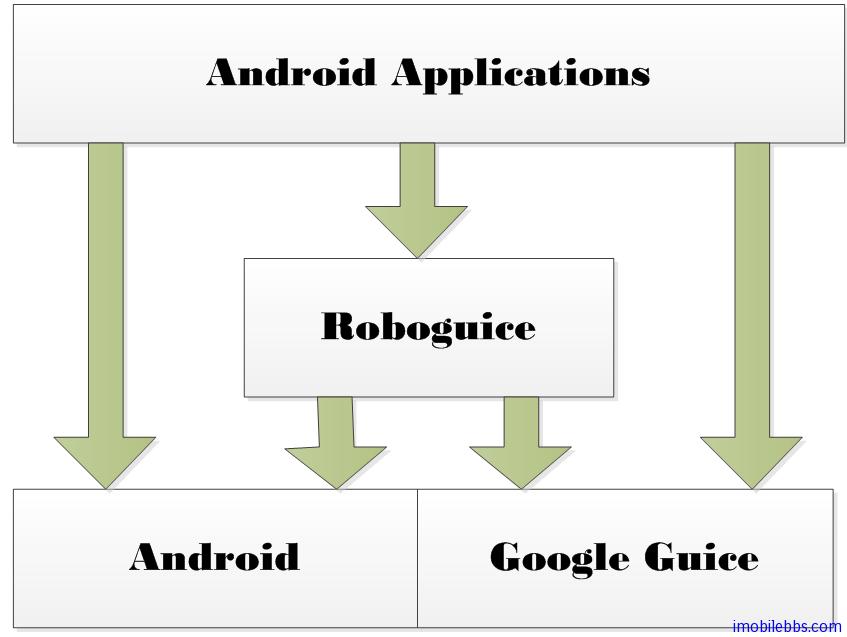

前面在 Android RoboGuice 使用指南(1):概述 对应 Roboguice 做了简要的介绍,之后介绍了 Google Guice 的基本用法,Roboguice 是基本 Android 和 Google Guice 开发的适用于 Android 平台的 Dependency Injection 开发包,下图为使用 Roboguice 开发应用的基本框图:

Android 应用程序可以直接使用 Google Guice 来为普通类进行注入操作,而对和 Android 平台相关的类如 Activity,Context,Service,View 等可以使用 Roboguice 进行注入操作。

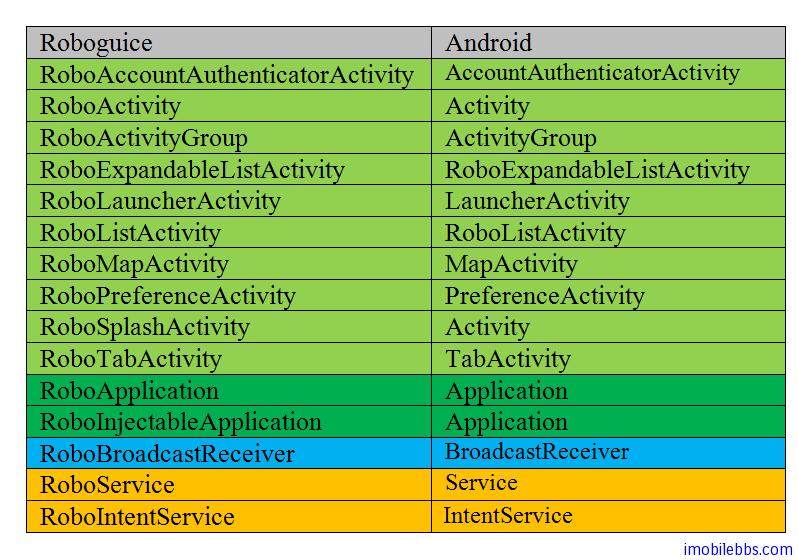

在例 Android RoboGuice 使用指南(2):第一个例子 Hello World 介绍了使用 RoboGuice 开发的步骤,原先从 Activity 派生的类一般需要改成从 RoboActivity 派生,并添加从 RoboApplication 派生的类作为 Application 应用的 Application 类,详细的对应表如下:

RoboGuice 支持的标记如下:

  • @ContextScoped : 表示 Scope 为 Context 范围 Android RoboGuice 使用指南(11): Scopes
  • @InjectExtra : Intent 的 getExtra 的注入标记
  • @InjectPreference: 注入 Preference
  • @InjectResource: 注入 Resource,如 drawable, icon 等
  • @InjectView: 注入 View
  • @Inject: Guice 标记,可以注入 Android 平台支持的各种服务,比如 LocationManager 等。
  • @SharedPreferencesName: SharedPreferences 名称等

此外,RoboGuice 还提供了简单的消息 publish/subscribe 机制,以及可以支持 Dependency Injection 的 RoboThread, RoboAsyncTask ,RoboLooperThread 等,将在后面的文章详细说明。
